Introduction

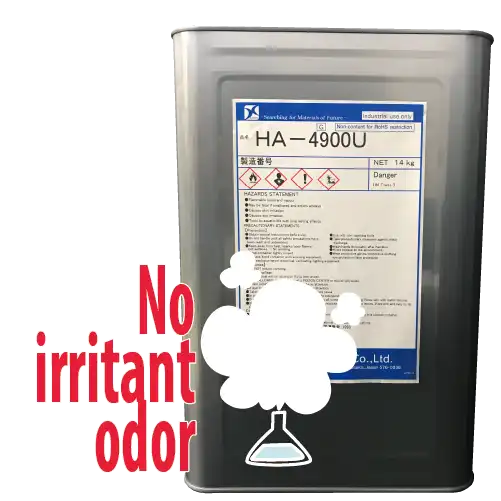

HA-4900U is a hydrocarbon-based cleaner. Significantly lower odors than conventional detergents!
Advantages of HA-4900U
 |
Low odor
HA-4900U is consisted without 22 substances causing offensive odors and amine, aldehyde, etc., and has no unpleasant odors compared with conventional cleaner. |
High cleaning property
Specially formulated cleaner HA-4900U will strongly remove solder paste from stencils after printing. |
Easy to use
Since HA-4900U is free from nonvolatile ingredients, rinsing after cleaning is not necessary, and it can be easily wiped off with a waste cloth. |
Less damage to stencils / masks
HA-4900U is consisted of neutral components and does not damage the metal surface. |
Low toxicity
HA-4900U does not contain halogen-based solvents (chlorine, bromine, or fluorine-based) or highly toxic ingredients (toluene, xylene, IPA, etc.). |
General characteristics
| Main component |
Hydrocarbon-based |
| Specific gravity |
0.8 |
| Boiling point |
150℃ or more |
| Flash point |
43℃ |
| UN Class |
3 |
| UN No |
1993 |
| Packing Group |
Ⅲ |
| Packaging |
14kg/UN can |
