Why is pallet cleaning necessary?
In the flow soldering process, a heat-resistant mounting jig called a flow pallet (solder pallet) is attached to cover the parts that are not to come into contact with the solder, such as surface-mounted components already mounted on the pallet, and only the parts to be soldered to the inserted components are open.
The pallet is then passed over the raised molten solder in the flow soldering bath by contact. During this process, flux adheres to the edges of the openings of the pallet, and the flux can cause the solder to creep up and adhere to the masked areas, so regular cleaning of the pallet is necessary.
Our line-up of pallet cleaning system
| PALLETCLEANERR series line-up | |||
|---|---|---|---|

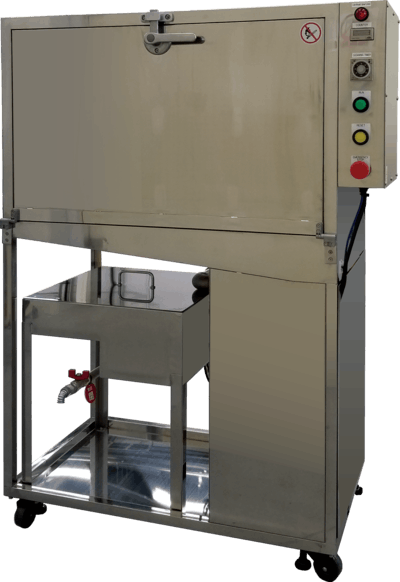

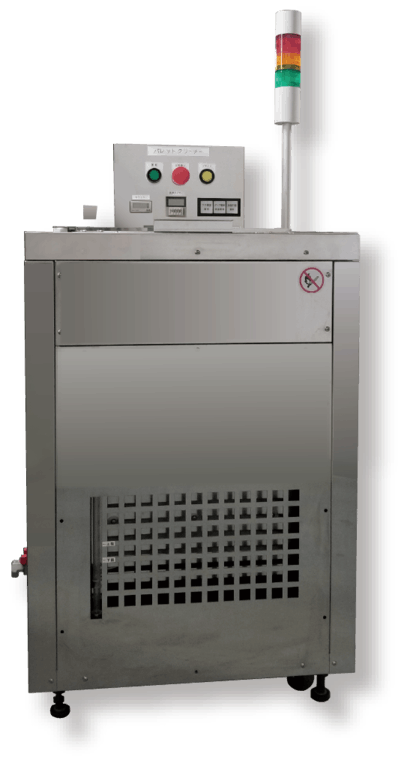

| Model | PCLT | PCM | PCL-001 |
| Advantage | Inexpensive Large capacity |
Compact | Large capacity |
| Machine size (W×D×H) |
950×500×1,250mm | 600×500×1,100mm | 900×600×1,150mm |
| Opening | 770×450mm | 450×200mm | 1,000×280mm |
| Effective cleaning area | 770×450mm Pallet size Max.400×400mm |
310×390mm | 800×310mm |
| Tank capacity | Approx. 25L | Approx. 12L | Approx. 17L |
| Designated cleaner | PALLETCLEAN series | ||
| Power input | Single phase, 100V | Three phase, 200V | |
